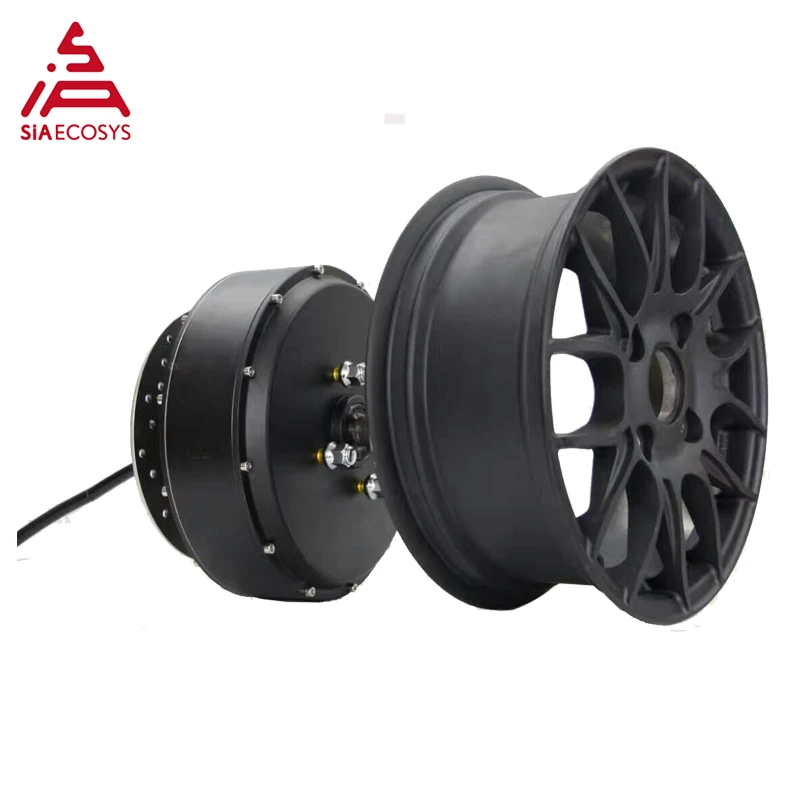

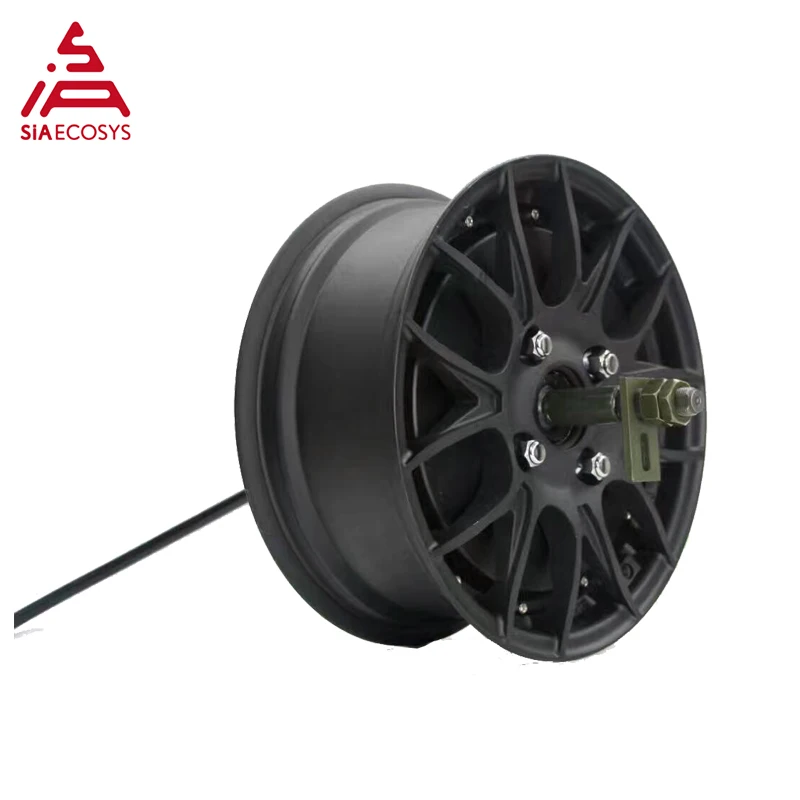

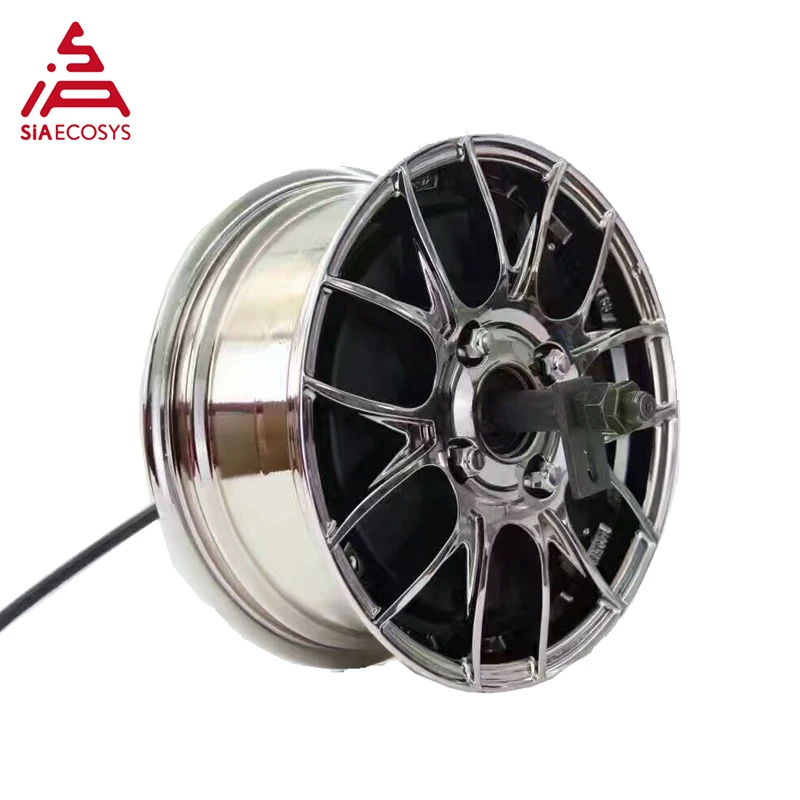

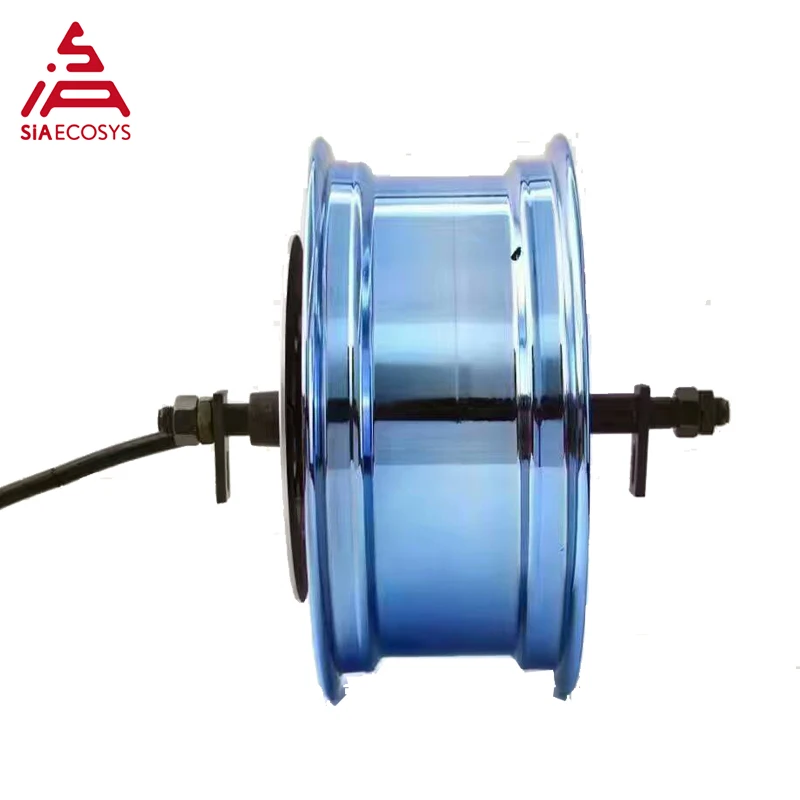

Powerful New Version QS Motor 5KW 260 V4 Brushless DC Single Shaft E-Car In-Wheel Hub Motor

Manufacturer Part Number a

Item Length 43

Item Width 43

Item Height 43

Item Weight 24.7

Material Type aluminium

Special Features driving

Interchange Part Number a

Country/Region of Manufacture china

Placement on Vehicle Rear

Other Part Number a

Brand Name QSMOTOR

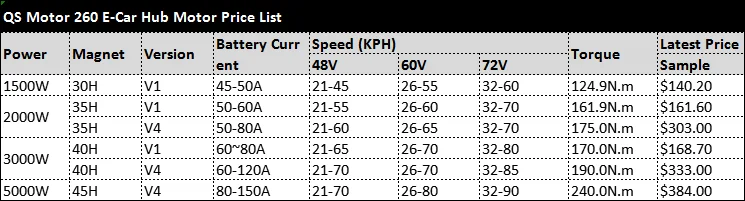

Powerful New Version QS Motor 5KW 260 V4 Brushless DC Single Shaft E-Car In-Wheel Hub Motor For 12inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle. 260 motor means the diameter of iron ring/hoop of rotor is 260mm, for all 260 motor, e.g. 12inch,13inch & 14inch 260 e-scooter hub motor,etc., the configuration & performance are the same. Matched rim Option: Key Features 1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need.Which save space. 2). It could be installed in the rear to save more space for battery. 3). Support regenerative braking 4). High efficiency: 85~92% QS MOTOR 2601500W-5000W E-Car Hub Motor List PS.1). Above quotation base on 260 electric car hub motor, 48V~96V. 2).Above configuration is suggested for mass production, for EVenthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable). Product description Genearlly Spec: Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor Brand: QS Motor, QSMOTOR Motor Design: Single axle withoutmoped rim (integrated) Matching Rim Size:12inch, 13inch & above wheel rim, CB ≥60mm,PCD ≤110mm(PCD 4*100mm, CB60mm as default) Magnet Height: 45mm, 16 pole pairs Stator: AluminumCore Rated Power: 5000W Speed: 24KPH-90KPH, it's customized, genearlly we will design as 72V70KPH. Work Voltage range: 48V-96V, will be 72V as default. Max Torque approx 240.0N.m KV: 10.6/11.6/12.9/16.45(optional) Thermic Probe: KTY83-122 (as default, optional) Max Efficiency approx 84% Working Temperature: 70-120℃, peak 150 ℃ Brake type: Disc brake (as default), PCD6*44mm for bicycl Dual Halls with waterproof connectors(One for using, one for spare 12mm axle flats 16mm² Cross Section of Phase Wire(not including insulation layer) Waterproof Grade: IP54 Color: Black (As default) N.W/ G.W: 23.0kg/24.7kg Dimension Drawing: QS 260 e-car hub motor with 12*5.0inch wheel rim Please noted: Optional appearance,drawing, performance curve/test reportare available. If you need more technical information, please feel free to contact us. We will give you reply in 12hours. Conversion kits for 260 5kW E-Car hub motor We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc. Application for E-Car hub motor
